Project Description

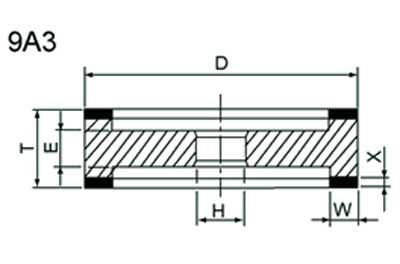

9A3 diamond grinding wheels
Abrasive grain: synthetic diamond powder
Bond: resin,metal or vitrified
Usage:9A3 diamond grinding wheels are used for sharpening and finishing hard alloyed tools, glass, ceramic,quarts and semi-conductors.
| D (mm) | W (mm) | X (mm) | T (mm) | H (mm) | E (mm) | |||||||
| 100 | 4 · 5 |
|
22 | Up on request | 10 | |||||||
| 6 · 8 | 22 | 10 | ||||||||||
| 10 | 22 | 10 | ||||||||||
| 125 | 4 · 6 | 22 | 10 | |||||||||
| 8 · 10 | 22 | 10 | ||||||||||
| 150 | 4 · 6 | 25 · 35 | 14 | |||||||||
| 8 · 10 | 25 · 35 | 14 | ||||||||||
| 12 · 15 | 25 · 35 | 14 | ||||||||||
| 175 | 4 · 6 | 25 · 35 | 14 | |||||||||
| 8 · 10 | 25 · 35 | 14 | ||||||||||
| 12 · 15 | 25 · 35 | 14 | ||||||||||
| 200 | 8 · 10 | 30 · 35 | 18 | |||||||||
| 12 · 15 | 30 · 35 | 18 |
