Project Description

Application:

12V2 carbide wheel are widely used for milling cutters,reamers,broaches,precision grinding and face,surface grinding.

Specification:

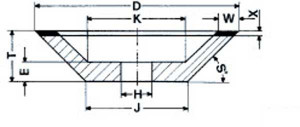

12V2-grinding-wheel-shape

D	T	H	U	X	S
75mm	10,12mm	10,19,20mm	2,3mm	2,3mm	40°
90mm	10,12,15mm	10,19,20mm	2,3mm	2,3mm	30°，45°
100mm	12,15mm	10,19,20,32mm	3mm	3,5mm	45°
125mm	15,16,18mm	10,19,20,32mm	3,4mm	3,5mm	25°，45°
150mm	16,18mm	32mm	3,4mm	5,6,8mm	45°
175mm	18,20mm	32mm	3,4,5mm	5,6,8mm	45°
200mm	20,25mm	32,75mm	3,4,5mm	5,8,10mm	45°

Features:

1, High grinding efficiency.
2, Less heat generation
3, Long service life.
