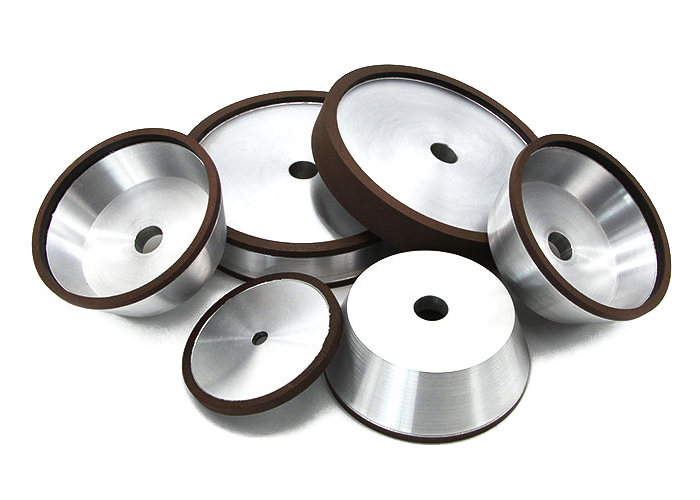

CBN grinding wheel

CBN grinding wheel

/CBN grinding wheel

CBN Grinding Wheels are mainly used for machining high speed steel, cast iron and so on.

CBN grinding wheel

CBN Grinding Wheels are mainly used for machining high speed steel, cast iron and so on.

  • CBN grinding wheel for gear hob cutter CBN grinding wheel for gear hob cutter
    This type of CBN grinding wheels are specially used for gear hob cutter grinding, before grinding, we need to use Green silicon carbide grinding wheel dress it, to make sure it has good concentricity. During grinding, if you find the CBN wheel you are using is a little bit hard, you should slow down the line speed from 40m/s to 30m/s. The roughness and sharpness are the most important for the CBN wheels.
  • Vitrified bond CBN mounted points Vitrified bond CBN mounted points
    Vitrified bond CBN mounted points are used for steering pump, compressor, bearing races, injection nozzles, hydraulic lifter, gear bores and so on. Processing material like high-speed steels, high carbon, high chrome steels, tool & die steels, cast iron (alloy cast iron, cold-excited cast iron, ductile cast iron, etc.) powder metallurgy, steel (45 steel, 55 steel, 20Cr, etc.) materials.
  • Resin bond CBN surface grinding wheel Resin bond CBN surface grinding wheel
    Resin bond CBN surface grinding wheel is mainly used for fine grinding of double-disc surface grinding of the inner and outer race surfaces of bearings, transmission gears, washers, tappet shims, compressor part, vane pump vanes, gearshift gears, gaskets, slots, water oil pressure pump blades, precision springs and so on. These are applicable to a wide range of materials, such as high-speed tool steel, die steel, bearing steel, carbon tool steel, spring steel, cast iron, sintered ferrous metal, etc. Our superior tech for this wide surface wheels is applied in CBN distribution, consistent bond qualify, and dimensional accuracy.
  • Vitrified CBN Grinding wheels for camshaft and crankshaft Vitrified-CBN-Grinding-wheels-for-camshaft-and-crankshaft
    Vitrified CBN grinding wheels are mainly used for camshaft and crankshaft of automotive, motorcycle, diesel, gasoline etc. Material includes cast iron, carbon steel, alloy steel, bearing steel etc. Suit for grinder like Japan Toyota, German Junker and Schaudt etc.
  • Vitrified CBN surface grinding wheel Vitrified CBN surface grinding wheel
    Vitrified CBN surface grinding wheel is used for grinding the end face, piston ring, gasket, filling piece, compressor part, semiconductor material, magnetic material, cutter, the stator of vane pump, rotor, blade end, precision spring, etc.
  • Resin bond CBN grinding wheel for HSS sharpening Resin bond CBN grinding wheel for HSS sharpening
    Forturetools produce this type of Resin bond CBN grinding wheel for HSS sharpening, for high-speed steel cold saw hacksaw blade teeth, this grinding wheel choose high-quality raw cubic boron nitride abrasive sand grain and resin bond materials, which makes it has a very strength grinding and sharpening ability, the service life is much longer than common wheels.
  • Diamond and CBN cut off wheels Diamond and CBN cut off wheels
    Diamond and CBN cut off wheels are used for different material cutting and slotting usage, usually material like glass, ceramic,stone,carbide use diamond cutting wheel and CBN cutting wheel suit for material similar with steel.
  • CBN Grinding wheel for band saw blade sharpening CBN Grinding wheel for band saw blade sharpening
    The electroplated CBN grinding wheel is specially used for the grinding of band saw chain. The electroplating process on the surface of the CBN plated steel substrate obtains precision, ensures high-quality tooth shapes, and make the band saw chain blade sharper.
