Name
Brazing diamond grinding head cutter
Diameter 73mm(3 inch)
Concave Diameter 10mm,15mm,20mm,25mm,30mm,40mm for option
Abor Hole 20mm
Grit 60#
Usage
Brazed diamond concave grinding wheels are suitable for grinding quartz stone, marble, granite, ceramic, artificial stone and glass, etc., especially for building concrete exterior walls in decoration. Floor leveling and grinding of edge, chamfering and arc for marble and granite decorative plates.
Total quantity 1 pc/lot
Package cartoon
Option Code explaination:
D73H20ConcaveDia10mm:
Diameter is 73mm,Hole is 20mm,Concave Diameter is 10mm,Wheel Thickness is 13mm.
D73H20ConcaveDia15mm:
Diameter is 73mm,Hole is 20mm,Concave Diameter is 15mm,Wheel Thickness is 18mm.
D73H20ConcaveDia20mm:
Diameter is 73mm,Hole is 20mm,Concave Diameter is 20mm,Wheel Thickness is 23mm.
D73H20ConcaveDia25mm:
Diameter is 73mm,Hole is 20mm,Concave Diameter is 25mm,Wheel Thickness is 28mm.
D73H20ConcaveDia30mm:
Diameter is 73mm,Hole is 20mm,Concave Diameter is 30mm,Wheel Thickness is 33mm.
D73H20ConcaveDia40mm:
Diameter is 73mm,Hole is 20mm,Concave Diameter is 40mm,Wheel Thickness is 43mm.



BUY this product,visit aliexpress store link https://goo.gl/jxYvNa or go to amazon store link https://goo.gl/2vRoAb

Need this or other customized grinding tools,feel free to contact.
Brand:forturetools web: http://www.forturetools.com
Main Products:grinding wheels/other abrasive tools
Mail:abrasive@ftm96.com
Whatsapp/wechat:+8613733809594
Contact:Mr.Brian zhao
Keep up with our socially!
https://www.facebook.com/ftmabrasivetools
https://www.youtube.com/c/Ftm-abrasive-tools
https://www.linkedin.com/company/zhengzhou-forture-tools-co-ltd-

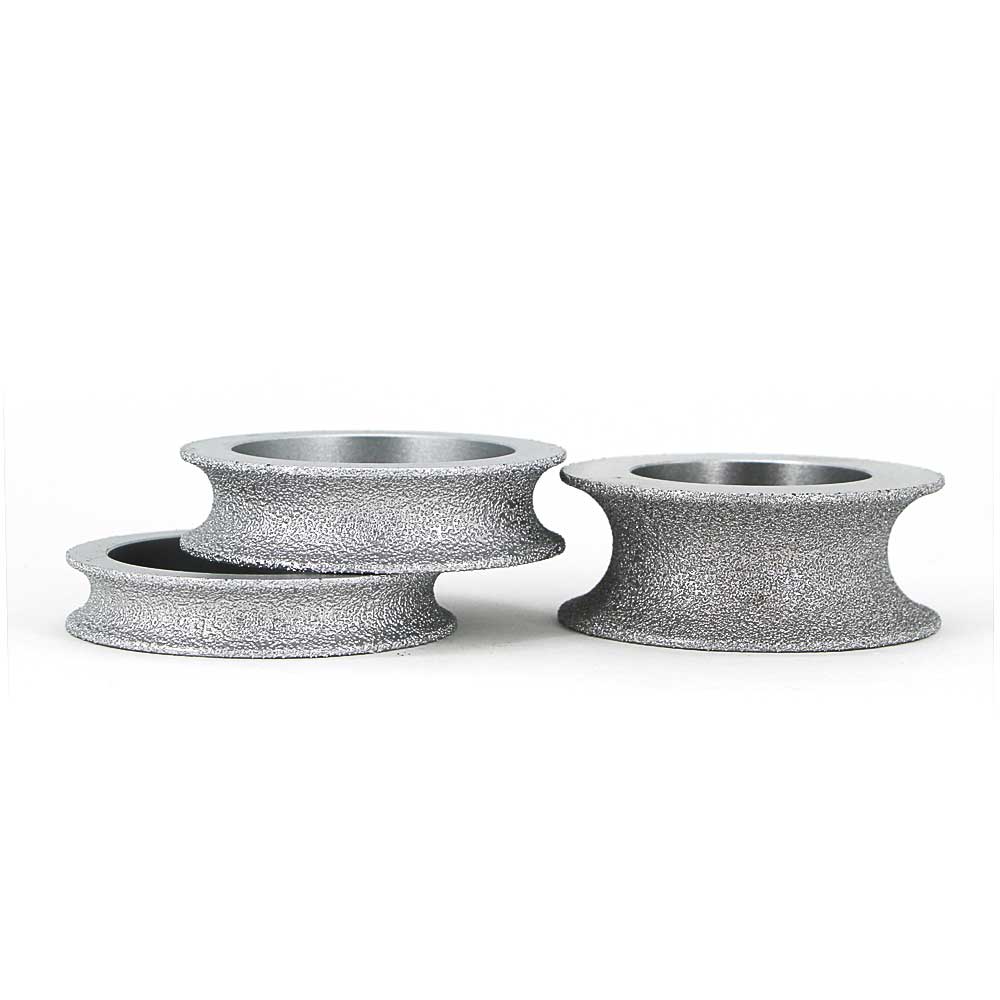

Brazed diamond concave grinding wheels

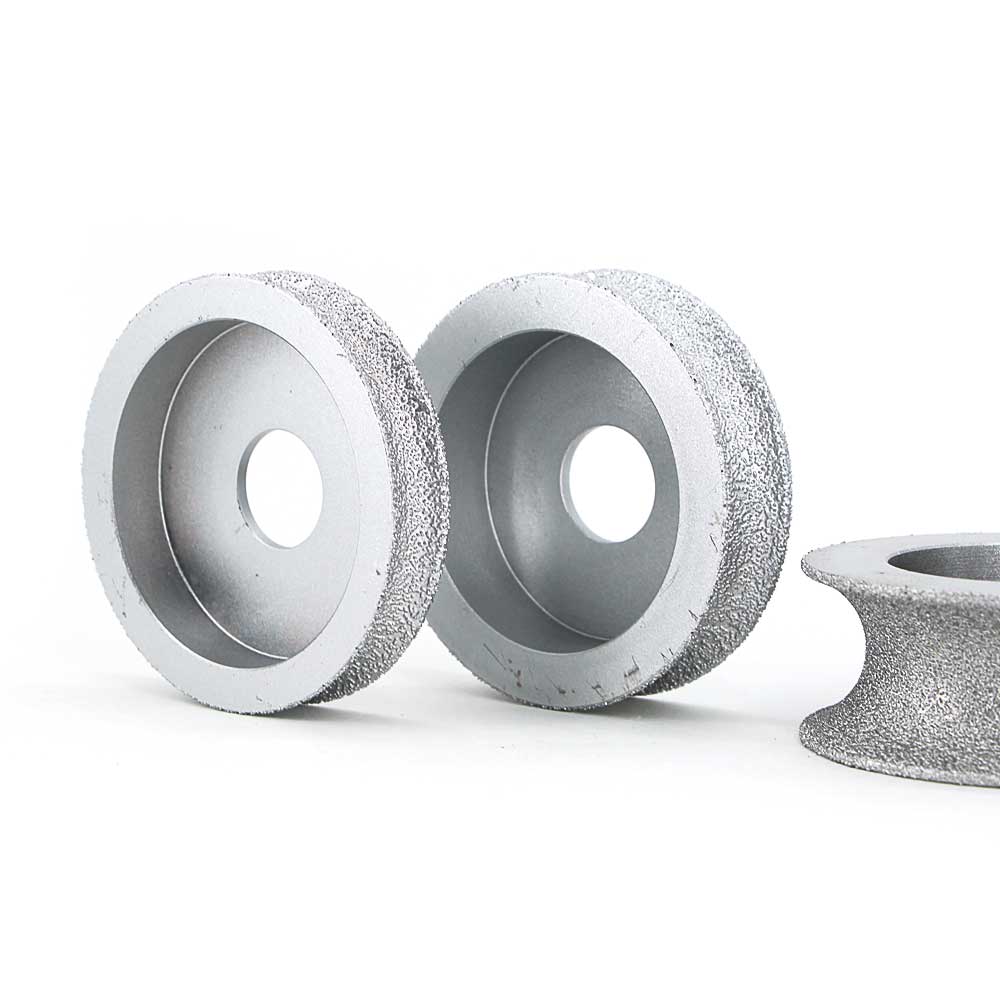

Brazed diamond concave grinding wheels

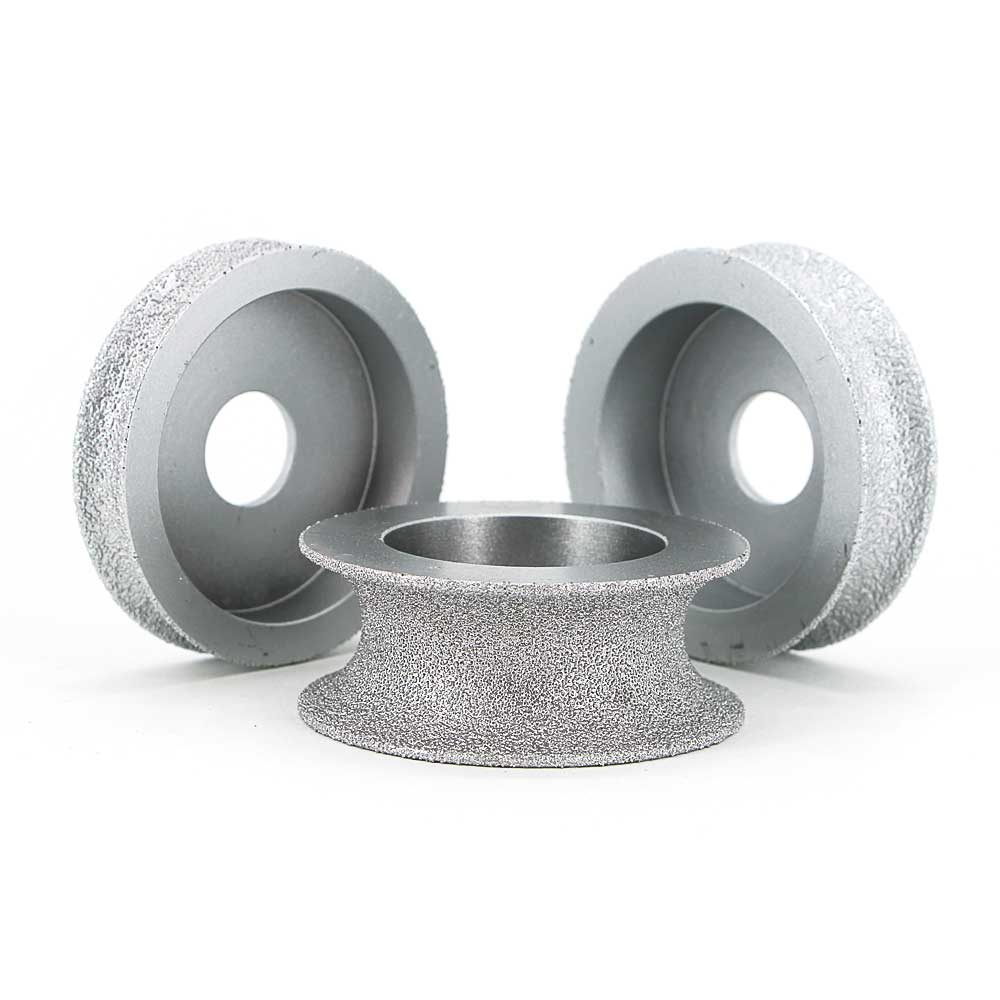

Brazed diamond concave grinding wheels

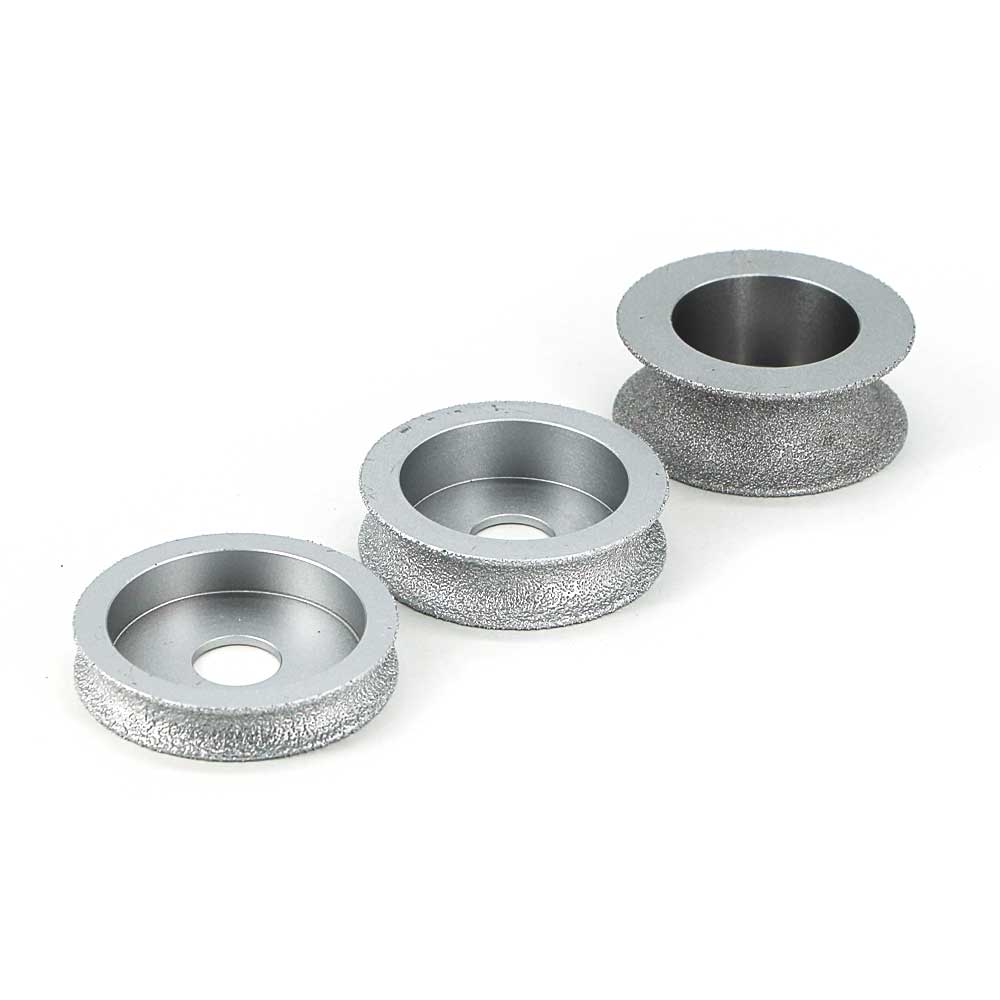

Brazed diamond concave grinding wheels

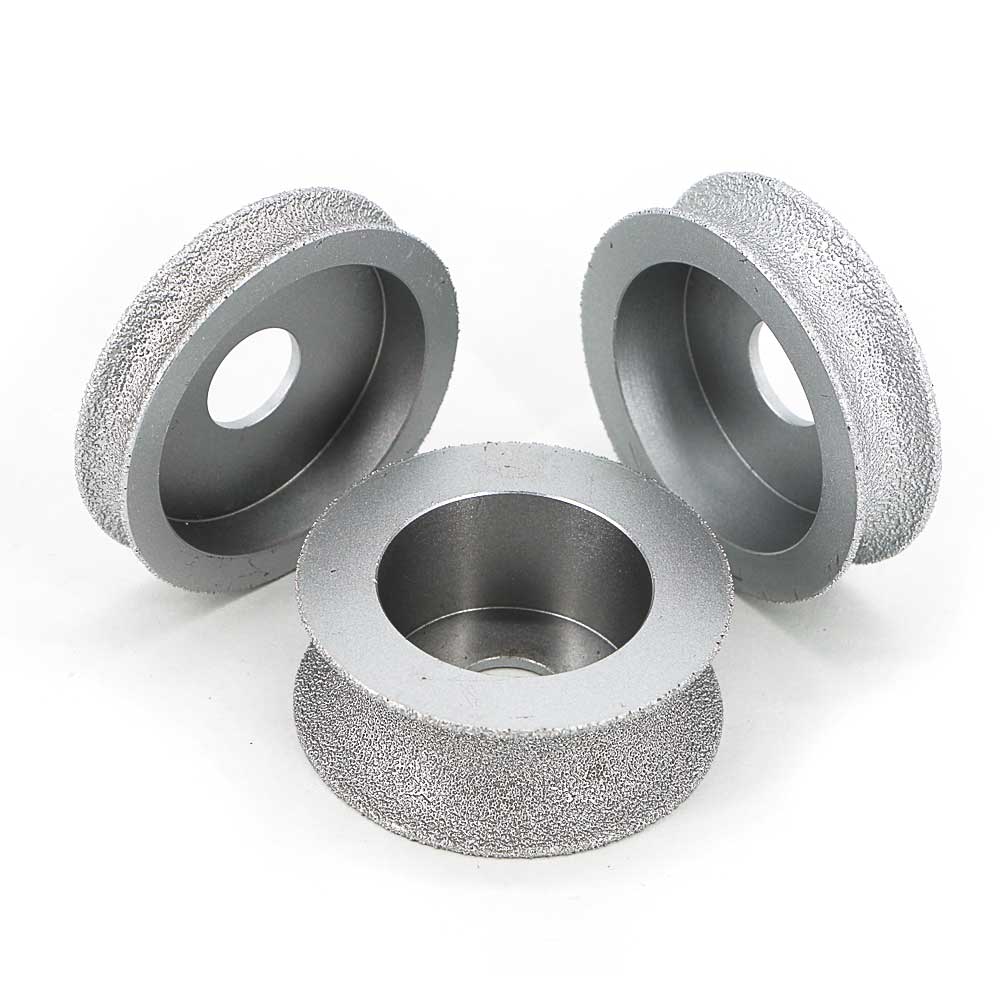

Brazed diamond concave grinding wheels

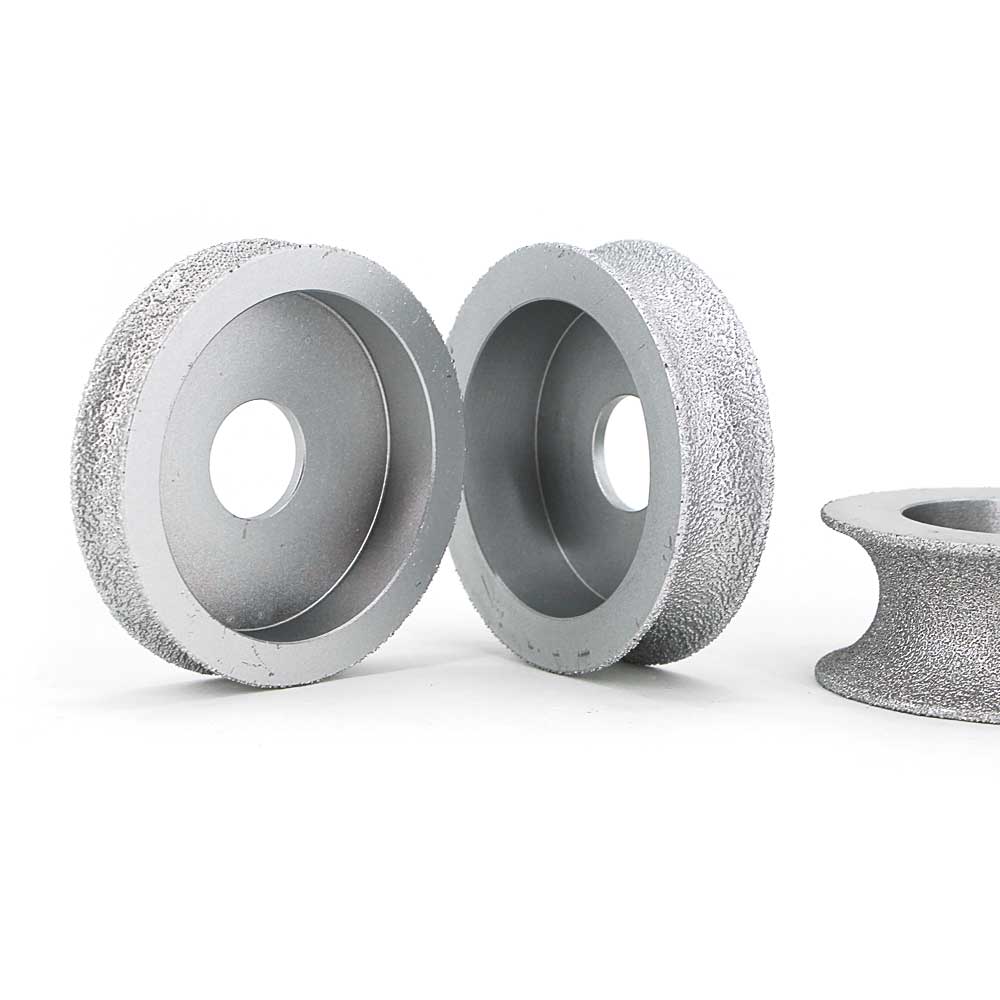

Brazed diamond concave grinding wheels
